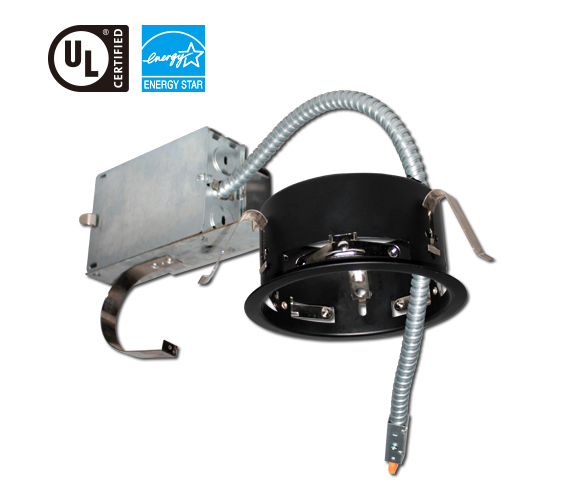

CLED4AR
4 inch Architectural Remodel Frame
Features
■ Consisted of Galvanized steel.
■ Conduit quick-connect connectors facilitate installation.
■ Installs from below ceiling, reflector is secured in place by 3 tension clips
■ J-Box is mounted on the frame for easy wire access and driver installation and replacement.
Product Code
■ Consisted of Galvanized steel.
■ Conduit quick-connect connectors facilitate installation.
■ Installs from below ceiling, reflector is secured in place by 3 tension clips
■ J-Box is mounted on the frame for easy wire access and driver installation and replacement.
Product Code
Catalog NO. | Description | Color Temp |
---|---|---|
CLED4AR-15 | 4 inch Architectural Remodel Frame in Kit / 17 W | -27 2700K |
CLED4AR-21 | 4 inch Architectural Remodel Frame in Kit / 23 W | -30 3000K |
CLED4AR-28 | 4 inch Architectural Remodel Frame in Kit / 27 W | -40 4000K |
-50 5000K |
LM79 Report
> CLED415AR - 3000 / 4000K CRI 80
> CLED415AR - 5000K CRI 80
> CLED421AR - 3000 / 4000K CRI 80
> CLED428AR - 3000K CRI 80
Energy Star
> CLED415AR - 3000 / 4000K CRI 80
> CLED421AR - 3000 / 4000K CRI 80
> CLED428AR - 3000K CRI 80
