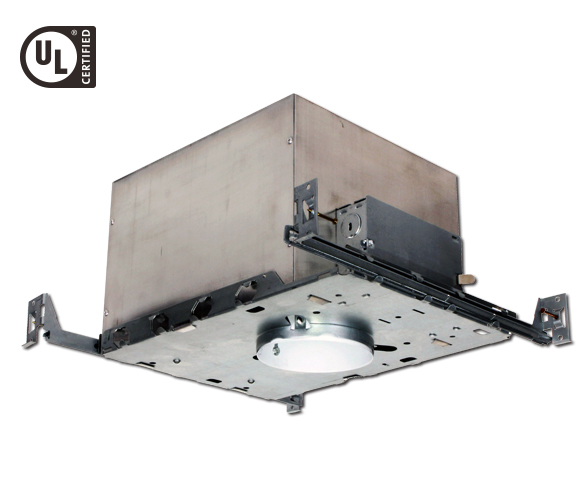

HL400ICA
4 inch IC Low Voltage New construction Housing (12V MR16, 12V LED)
DESCRIPTION
Housing
■ Double wall aluminum construction of greater heat dissipation.
■ Housing adjusts for ceiling up to 1-1/4" thick.
■ Gasketed to prevent airflow from heated or air conditioned space.
Plaster Frame
■ Galvanized steel construction. The housing can be removed from plaster frame to provide access to the junction box.
Junction Box
■ Listed for through branch circuit wiring.
■ Contains seven 7/8" knockouts and four Romex pryouts with strain relief.
Bar Hanger
■ Pre-installed Real nail easily install in regular lumber, engineered lumber.
■ Bar Hangers are adjustable from 13 - 5/8" to 25" and can be repositioned 90 degree on plaster frame.
Transformer
■ 120V integral magnetic transformer steps line voltage down to lamp operation voltage. For lamps up to 50W.
Thermal Portector
■ Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
Listings
■ cULus Listed for Damp Location
■ cULus Listed for Feed Through
■ Certified under ASTM-E283 for Air tight construction
■ Double wall aluminum construction of greater heat dissipation.
■ Housing adjusts for ceiling up to 1-1/4" thick.
■ Gasketed to prevent airflow from heated or air conditioned space.
Plaster Frame
■ Galvanized steel construction. The housing can be removed from plaster frame to provide access to the junction box.
Junction Box
■ Listed for through branch circuit wiring.
■ Contains seven 7/8" knockouts and four Romex pryouts with strain relief.
Bar Hanger
■ Pre-installed Real nail easily install in regular lumber, engineered lumber.
■ Bar Hangers are adjustable from 13 - 5/8" to 25" and can be repositioned 90 degree on plaster frame.
Transformer
■ 120V integral magnetic transformer steps line voltage down to lamp operation voltage. For lamps up to 50W.
Thermal Portector
■ Self resetting thermal protector deactivates fixture if overheating occurs due to improper lamping or misapplied insulation.
Listings
■ cULus Listed for Damp Location
■ cULus Listed for Feed Through
■ Certified under ASTM-E283 for Air tight construction
4 INCH LOW VOLTAGE TRIMS
