Features

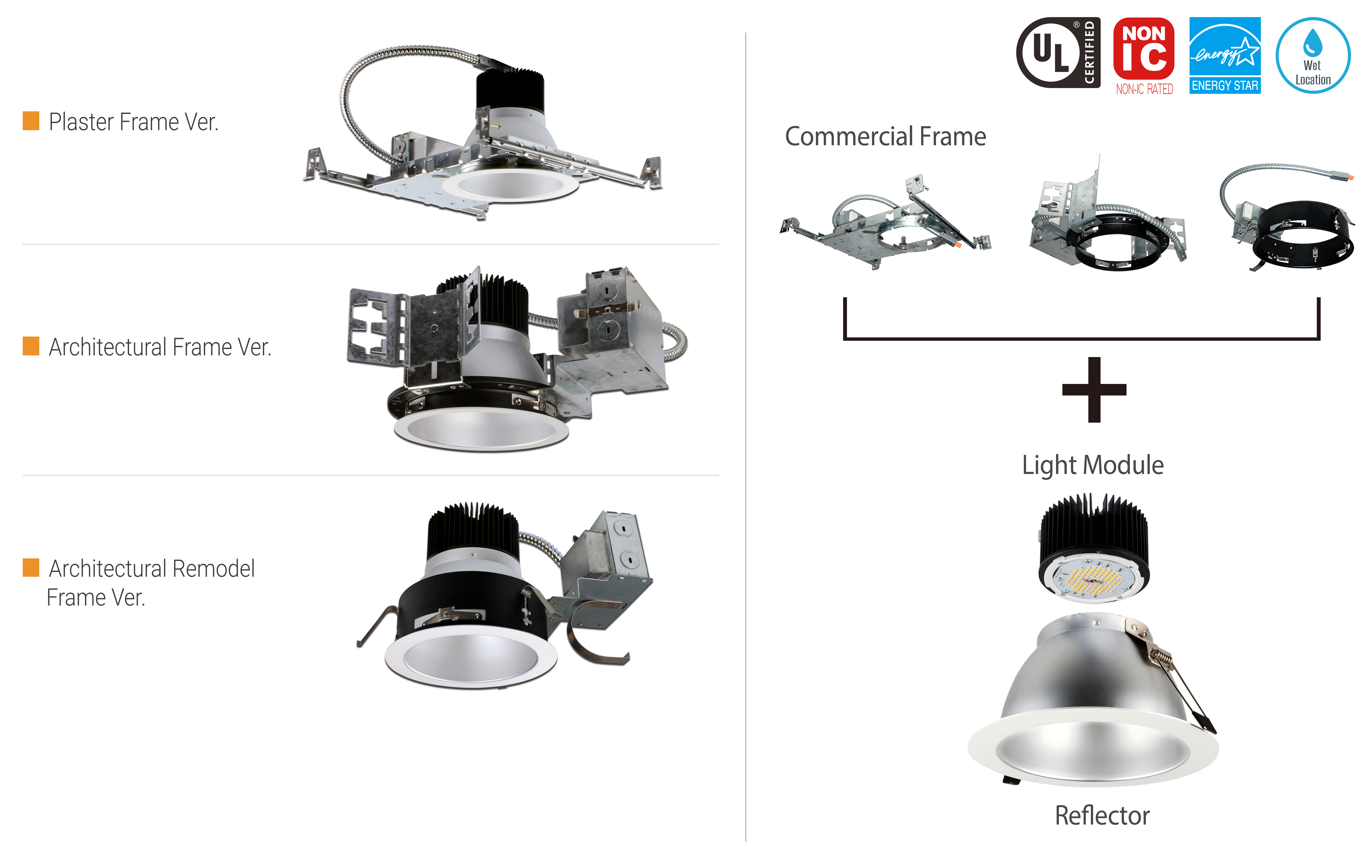

■ Selectable 5 Wattage & 5 CCT LED Commercial Recessed Downlight.

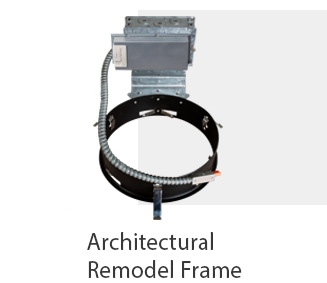

■ Three types of LED Commercial frame.
■ 4, 6, 8 and 10 inch Commercial frame & reflector sizes.
■ Connectors allow easy connection between Driver and Light module.

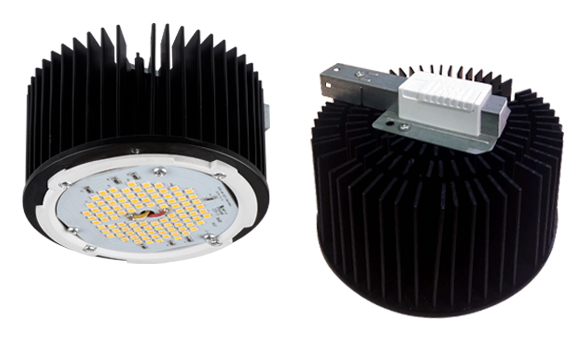

Light Engine
■ Protected LED driver performs at 120-277V
■ Dimmable to 10% with most standard 0-10V dimmers
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
■ Selectable 5 Wattage & 5 CCT LED Commercial Recessed Downlight.
■ Three types of LED Commercial frame.
■ 4, 6, 8 and 10 inch Commercial frame & reflector sizes.
■ Connectors allow easy connection between Driver and Light module.
Light Engine
■ Protected LED driver performs at 120-277V
■ Dimmable to 10% with most standard 0-10V dimmers
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
Download
> Sheet Download
|
|
.jpg)
|
Feture
■ Consisted of Galvanized steel
■ Selectable 5 wattage with built-in switch on the driver
■ Junction box is mounted on the frame for easy wire access and driver installation and replacement

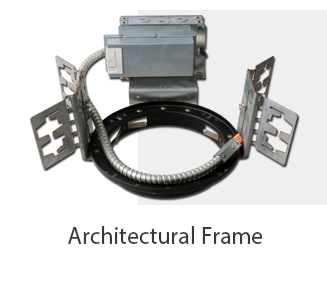

■ Architectural frame is with C channel and flat hanger bars (ordered separately) for tie down to ceiling grids
Driver Watt
■ 4 inch Frame with Driver Kit : 27W, 23W, 17W, 11W, 08W
■ 6 inch Frame with Driver Kit : 47W, 41W, 30W, 19W, 14W
■ 8 inch Frame with Driver Kit : 53W, 44W, 33W, 21W, 16W
■ 10 inch Frame with Driver Kit : 64W, 56W, 42W, 27W, 20W
|
Feature
|
|
Feature

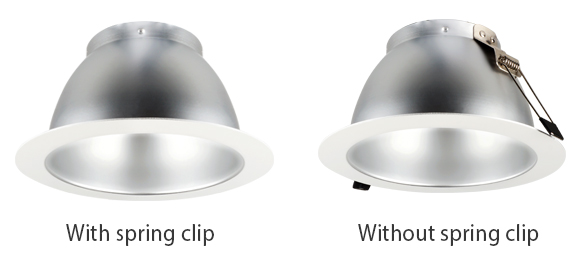

■ Self-flanged aluminum reflector ■ Light module is assembled into the reflector by twist lock system ■ Finish - HZW : Haze Reflector / White Ring - HZ : Haze Reflector / Haze Ring - WW : White Reflector / White Ring - CW : Clear Reflector / White Ring |
