Features

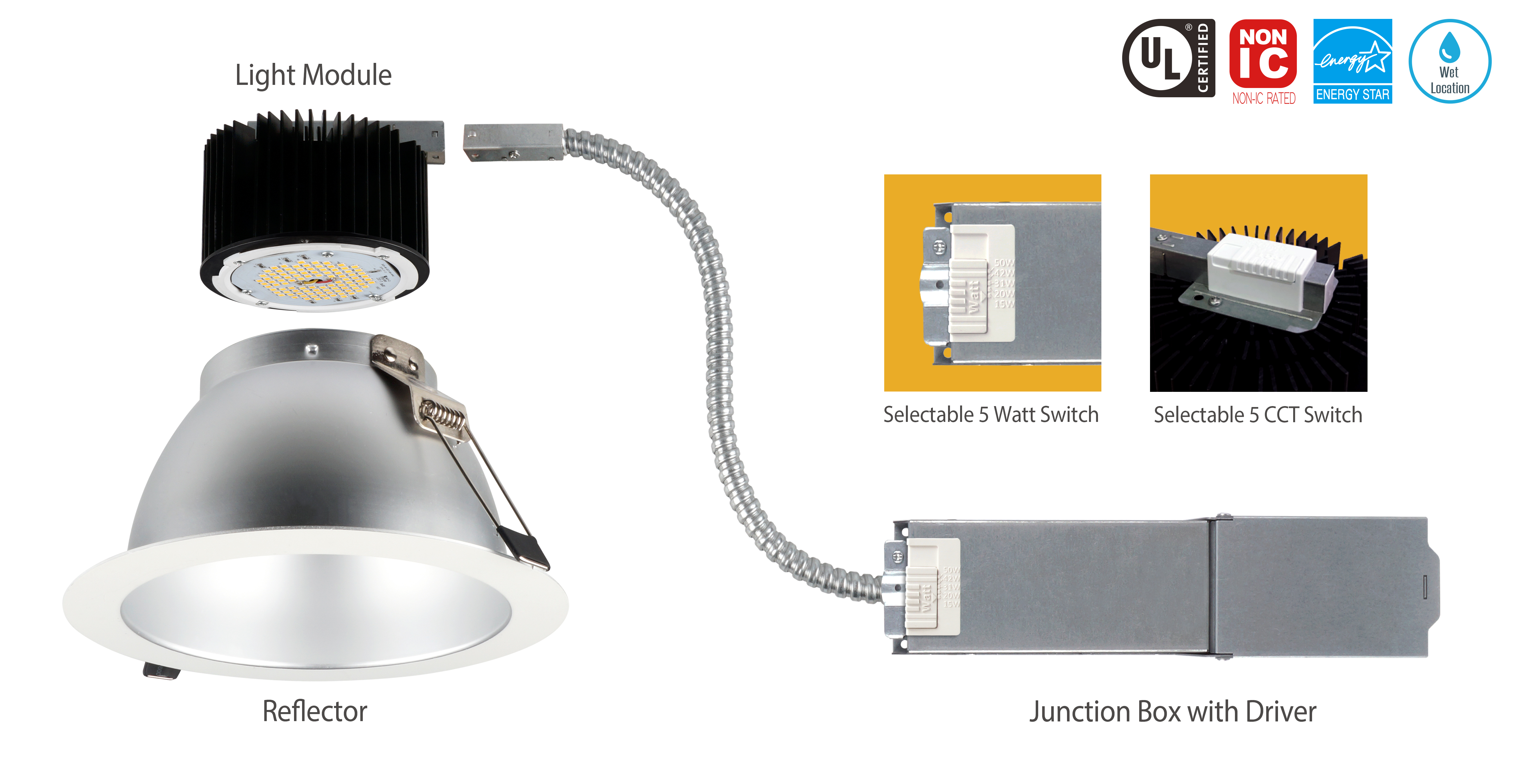

■ Selectable 5 Wattage & 5 CCT LED Commercial Recessed Downlight.
■ Featured Twist-lock mechanism to easily locked Light module to Multiple types of reflectors.
■ 4, 6, 8 and 10 inch of White, Haze and Clear color round Reflectors.
■ Connectors allow easy connection between Driver and Light module.
Light Engine
■ Protected LED driver performs at 120-277V
■ Dimmable to 10% with most standard 0-10V dimmers
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
■ Selectable 5 Wattage & 5 CCT LED Commercial Recessed Downlight.
■ Featured Twist-lock mechanism to easily locked Light module to Multiple types of reflectors.
■ 4, 6, 8 and 10 inch of White, Haze and Clear color round Reflectors.
■ Connectors allow easy connection between Driver and Light module.
Light Engine
■ Protected LED driver performs at 120-277V
■ Dimmable to 10% with most standard 0-10V dimmers
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
|

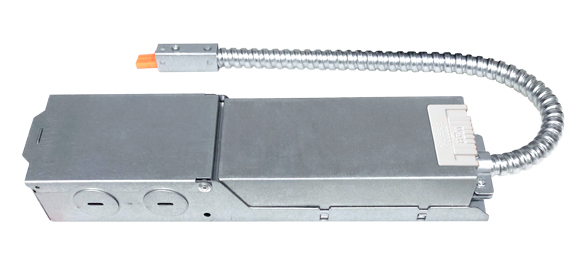

Feture ■ Selectable 5 wattage with built-in switch on the driver ■ Each driver is supposed to be used with dedicated light module Driver Watt ■ 4 inch J-Box with Driver : 27W, 23W, 17W, 11W, 08W ■ 6 inch J-Box with Driver : 47W, 41W, 30W, 19W, 14W ■ 8 inch J-Box with Driver : 53W, 44W, 33W, 21W, 16W ■ 10 inch J-Box with Driver : 64W, 56W, 42W, 27W, 20W |
|
Feature
|
|
Feature
■ Self-flanged aluminum reflector ■ Light module is assembled into the reflector by twist lock system ■ Finish - HZW : Haze Reflector / White Ring - HZ : Haze Reflector / Haze Ring - WW : White Reflector / White Ring - CW : Clear Reflector / White Ring |
