Features
■ Selectable 3 Wattage & 3 CCT LED Commercial Emergency Recessed Downlight.

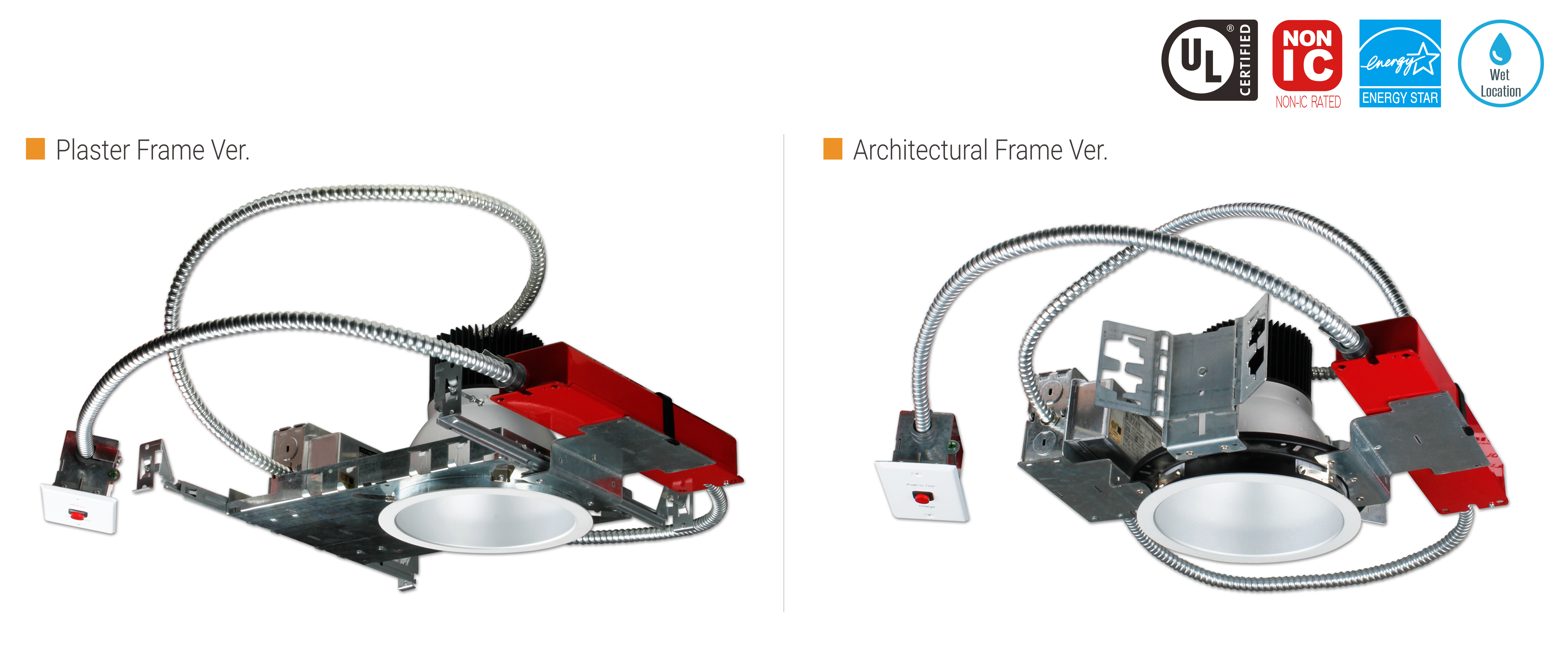

■ Two types of LED Commercial Emergency frame.
■ 4, 6, 8 and 10 inch Commercial frame & reflector sizes.
■ Connectors allow easy connection between Driver and Light module.
■ Integral test switch box included.
■ In the event of power interruption, fixtures will continue to work for min. 90 minute.
■ For emergency option, add suffix "EM" to the part numbers of our LED fixtures.
■ Suitable for use in corridors, hospitals and any public areas.
Light Engine
■ Protected LED driver performs at 120-277V
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
■ Selectable 3 Wattage & 3 CCT LED Commercial Emergency Recessed Downlight.
■ Two types of LED Commercial Emergency frame.
■ 4, 6, 8 and 10 inch Commercial frame & reflector sizes.
■ Connectors allow easy connection between Driver and Light module.
■ Integral test switch box included.
■ In the event of power interruption, fixtures will continue to work for min. 90 minute.
■ For emergency option, add suffix "EM" to the part numbers of our LED fixtures.
■ Suitable for use in corridors, hospitals and any public areas.
Light Engine
■ Protected LED driver performs at 120-277V
■ Available in CCT 2700K, 3000K, 3500K, 4000K, 4500K and 5000K
■ CRI 80 or 90
■ Wet location / Non-IC
■ cUL listed / Energy Star certified
■ 5 year warranty
■ Lifetime of 50,000 hours
Download
📥 Spec Sheet Download
|
Feture
■ Consisted of Galvanized steel
■ Selectable 3 wattage with built-in switch on the driver
■ Driver and Emergency kit are included
■ Junction box is mounted on the frame for easy wire access and driver installation and replacement
■ Architectural frame is with C channel and flat hanger bars (ordered separately) for tie down to ceiling grids
Driver Watt
■ 4 inch Selectable Watt Driver : 27W, 22W, 16W
■ 6 inch Selectable Watt Driver : 48W, 39W, 29W
■ 8 inch Selectable Watt Driver : 55W, 45W, 35W
■ 10 inch Selectable Watt Driver : 66W, 51W, 40W
|
Feature
|
|
Feature

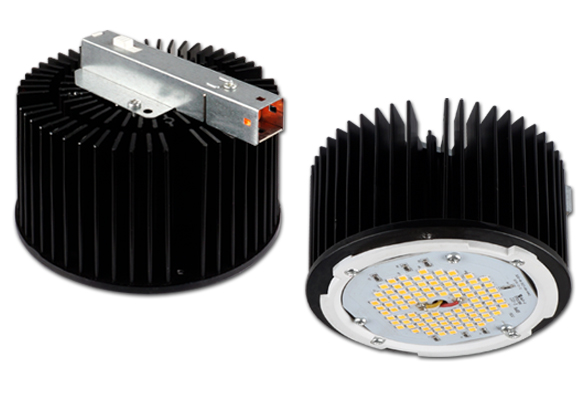

■ Self-flanged aluminum reflector ■ Light module is assembled into the reflector by twist lock system ■ Finish - HZW : Haze Reflector / White Ring - HZ : Haze Reflector / Haze Ring - WW : White Reflector / White Ring - CW : Clear Reflector / White Ring |
