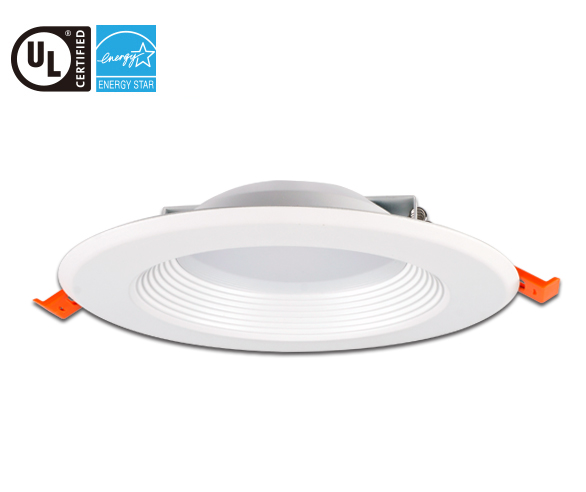

LKTC563EN

PERFORMANCE DATA

• 120V / CRI 90 / Wet location

• Selectable 3 Watt & 5 CCT

Watt	2700 K	3000 K	3500 K	4000 K	5000 K
12 Watt	1120 lm	1180 lm	1240 lm	1270 lm	1260 lm
8 Watt	810 lm	840 lm	880 lm	900 lm	900 lm
6 Watt	590 lm	620 lm	630 lm	650 lm	660 lm

• Finish : W, B, SN, BZ

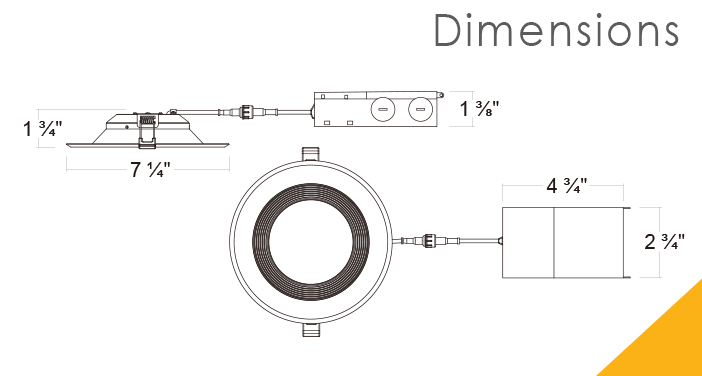

Description Spec Sheet Report I E S Drawing

Features
■ No housing required and includes pre-wired Junction box with Class 2 Dirver.
■ Use select 3 kinds of Watt & 5 kinds of CCT with switchs on the Junction box.
■ Cable fixing device allows quick and easy separation and coupling.

LED Light Engine
■ Protected LED driver performs at 120V.
■ Dimmable to 10% with most standard triac dimmers.
■ Available in CCT 2700K, 3000K, 3500K, 4000K and 5000K
■ CRI 80 or 90
■ Long life LED chips guaranteed up to 50,000 hours.
